Pulse prolongation, adjustable 10 to 1500ms, shape 6,2mm, without end-cover. Signal converter - pulse prolongation10ms - 1,5s pulse prolongation free adjustableFrom only 5µs/20µs trigger pulseOutput 24VDC/100mARetrigger-able or not retrigger-ableStatus display in outputWith/without transparency functionMountable on 35mm cap rail TS35Mountable side by side via link plugTension spring connectionShape 6,2mmHigh reliability, 5 years warrantyThe devices of the pulse prolongation series SF1 have been developed for the prolongation of digital pulses, which because of slowly SPS or PLC systems otherwise cannot be captured. Datasheet

Pulse prolongation, adjustable 10 to 1500ms, shape 6,2mm, without end-cover. Signal converter - pulse prolongation10ms - 1,5s pulse prolongation free adjustableFrom only 5µs/20µs trigger pulseOutput 24VDC/100mARetrigger-able or not retrigger-ableStatus display in outputWith/without transparency functionMountable on 35mm cap rail TS35Mountable side by side via link plugTension spring connectionShape 6,2mmHigh reliability, 5 years warrantyThe devices of the pulse prolongation series SF1 have been developed for the prolongation of digital pulses, which because of slowly SPS or PLC systems otherwise cannot be captured. Datasheet

Signal Converter – Pulse Prolongation with NPN Input, 10 to 1500ms, Housing 6,2mm. without cover plate.Input for devices with NPN output10ms – 1,5s pulse prolongation free adjustablemin. 5μs/20μs trigger pulseOutput 24VDC/100mARetrigger-able, or not retrigger-ableStatus display in outputWith/without transparency functionSupply 24VDCMountable on 35mm cap rail TS35Mountable side by side via link plugTension spring connectionShape 6,2mmHigh reliability, 5 years warrantyThe devices of the signal converter series SF2 are made for pulse prolongation of extremely short pulses. Already from 5μs on output pulses from 10 – 1500ms can be generated. The output pulse length can be rough adjusted via switch and fine adjusted via potentiometer. The devices have a connectable retrigger function. An also connectable transparency function allows also a longer input pulse than the adjusted output pulse length. The switching status is displayed by a LED. In difference to the SF1 series (PNP signal / plus switching), the SF2 is controlled with an NPN signal (ground switching). The pull-up resistor required for this is already integrated in the module, so there is no need for the external pull-up that is otherwise often required.Datasheet

Pulse delay, freely adjustable 1s to 14s, Housing 6,2mm. Without cover plate. Power supply 24V 1ms - 14s Pulse delay, freely adjustableOutput 24VDC/100mAOutput inverting / not invertingStatus display in outputSupply 24VDCfor mounting rail mounting TS35can be mounted in a row via jumpersTension clamp connectionDesign 6,2mmhigh reliability, 5 years warrantyThe SF3 series pulse delay devices are used for signal delay of digital pulses. Thus it is possible to suppress short interference pulses or to provide control signals with a switching delay. Time ranges from 1ms to 14s are freely adjustable via dip switches and potentiometers. The output signal can also be switched to inverting or non-inverting, via dip switches (configuration see following table). The switching status is indicated by an LED in the output. The module requires an auxiliary power of 24Vdc and can be snapped onto TS35 mounting rail.Datasheet

Signal converter with 24V output, Transmission frequency 200kHz. 4-channels. Shape 17,5mm. Signal converter / - Amplifier 4 channels into 24V (HTL)Signal amplifier / level shifterTransmission frequency 200kHzOutput 24VDC/4x 100mA short-circuit proof Each channel one status display in outputFast switching times of 0,5µs/1µsMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 17,5mm, superlowPB - Power-Bus -compatibleHigh reliability, 5 years warranty The signal amplifier and level shifter of the series SU1 have been developed for the converting of digital signals from 5V TTL to 24 V HTL up to 200 kHz.Datasheet

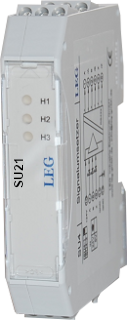

Signal converter with 5V output, transmission frequency up to 500kHz. 4-channels. Shape 17,5mm. Signal converter / - Amplifier 4 channels into 5V (TTL)Signal amplifier / level shifterTransmission frequency 500kHzOutput 5VDC/4x 50mA short-circuit proofEach cannel one status display in outputFast switching times of 0,5µs/1µsMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 17,5mm, superlowPB - Power-Bus - compatibleHigh reliability, 5 years warranty The signal converters and level shifters of the series SU2 have been developed for converting digital signals of  24V HTL to 5 V HTL or as signal converter / amplifier for square-wave signals up to 500 kHz.Datasheet

Signal converter RS422 into 24V (HTL) / 5V (TTL), power supply 24V DC, Shape 17,5mm. Signal converter 3 channels RS422 into 24V (HTL) / 5V (TTL) Level converterTransmission frequency 1MHzOutput 5/24VDC/3x 50mAPotential isolation Input/output Each channel one status display in output Fast switching timesBus can be enabled or disabled by jumperMountable on 35mm cap rail TS35Clear terminal labeling Narrow design Shape 17,5mm, superlowPB - Power-Bus - compatibleHigh reliability, 5 years warrantyThe RS422 signal converters and level converters of the series SU3 are suitable for converting of digital signals, from for example pulse genarators with RS422 output, to 24 V HTL or 5V TTL with frequencies up to 1MHz.Datasheet

Signal converter 24V(HTL) / 5V(TTL) into RS422. shape 17,5mm. Signal converter 3 channels 24V (HTL) / 5V (TTL) into RS422 Level shifter Transmission frequency 1MHzOutput 3 x RS422Potential isolation input/outputEach channel one status display in output Fast switching times Mountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 17,5mm, superlowPB - Power-Bus - compatibleHigh reliability, 5 years warrantyThe signal converters and level shifters of the series SU4 have been developed for the converting of digital signals from 5V TTL or 24 V HTL into RS422 with frequencies up to 1MHz.Datasheet

Signal converter 3 channel 1Vss sin/cos to 24V (HTL) / 5V (TTL)Input 1Vss sin / cosTransmission frequency 1MHzOutput 5/24VDC/3x 50mA Potential separation input/outputone status display per channel in the outputBus termination - 120 Ohm pluggablefast switching timesSupply 24VDCfor mounting rail mounting TS35clear terminal markingsmall dimensionsDesign 17,5mm, super flatPB - Power-Bus - capablehigh reliability, 5 years warrantyThe devices of the signal converter series SU5 are used for level conversion or level conversion of rotary or incremental encoders with sinusoidal output signals with a typical magnitude of 1Vss sin/cos, measured as difference signal at 120 Ohm resistance between the two signals A,/A ; B,/B or Z,/Z. Three independent channels are available which transmit the respective input signal to an output signal of 5V (TTL) or 24V (HTL), depending on the device version.Datenblatt

Signal converter 3 channel SU6 24V differential / RS422 (5V / TTL single ended)Level converter / level converterTransmission frequency 1MHzOutput RS422 / 5V TTL / single ended3-way potential isolationone status display per channel in the outputfast switching timesSupply 24VDCfor mounting rail mounting TS35clear terminal markingsmall dimensionsStyle 22,5mm, super flatPB - Power-Bus - capablehigh reliability, 5 years warrantyThe devices of the signal converter series SU6 are used for level conversion. Three channels are available. Depending on the connection, 24V differential signals or 24V ground related signals can be converted to RS422 or 5V TTL. This is ideal, for example, to transmit the signals of a rotary encoder interference-free and at the same time to adapt them to the voltage levels of the receiver device. One LED per channel indicates the switching status of the output. A 3-way potential separation between input / output and auxiliary power helps to decouple the different system levels.Datasheet

Signal converter / - amplifier 4-channel with NPN input.Signal converter with NPN inputTransmission frequency 200kHzOutput = Ucc / 4x100mAshort circuit proofOne status LED per channel at the outputfast switching time 0,5μs/1μsPower supply Ucc 9…30VDCfor DIN rail mounting TS35Clear terminal markingsmall dimensionsHousing 17,5mm, super flatPB - Power-Bus compatiblehigh reliability, 5 years warrantyThe devices of the SU7 signal converter series are used for amplification and/or level conversion of actuators or sensors with NPN output. Four channels with NPN input are available to the user and signals with a frequency of up to 200 kHz can be transmitted. The devices are available in two output variants, positive switching and push-pull output. The pulse-switching version emits the signal from the power supply (9...30V) when activated and the output is high-impedance when not activated. As a result, this device version is also suitable for connecting the outputs as an OR link.Datasheet
