Strain Gauge Amplifier in aluminum housing IP65. Strain Gauge Amplifier / DMS Amplifier Linearity error < 0,005%For compressive and tension forceFor full bridges >120OhmAdjustable transmission frequency 15Hz; 1,3kHz; 3,5kHzAdjustable output 0…±10V, 0..±20mA, 4…20mAOffset and gain adjustable, coarse / fineSupply 24VDCIsolation class IP65 Suitable for screw mounting Clear terminal labelingNarrow designShape 98 x 64 x 34 mm, IP65High reliability, 5 years warrantyThe devices of the  DMS-Amplifier series DM1 have been developed for converting signals of a  DMS-fullbridge into a norm signal 0...±10V , 0(4)...±20mA. This output value is adjustable via DIP-switch. Bridge sensivities from 2mV/V to 40mV/V are possible. The very coarse adjustment is done via DIP-switch. The finely adjustment is done coarse / fine via a 20-turn spindle-operated potentiometer. The bridge supply is switchable between 10V and 5V. An auxiliary power of  24Vdc is required. The units are in an aluminum housing according to isolation class IP65. Datasheet

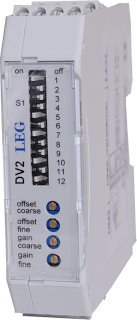

DMS Amplifier for 6-wire connection, for cap rail mounting. Strain Gauge AmplifierDMS-AmplifierLinearity error < 0,005%For compressive and tension forceFor full bridges >120 Ohm Universal 6-wire techniqueAdjustable transmission frequency15Hz; 1,3kHz; 3,5kHzAdjustable output 0…±10V, 0..±20mA, 4…20mAOffset and gain adjustable, coarse / fineSupply 24VDCMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 22,5mmHigh reliability, 5 years warranty The devices of the DMS-Amplifiers of series DM2 have been developed for converting a signal of a  DMS-full bridge into a norm signal 0...±10V , 0(4)...±20mA. This output value is adjustable via DIP-switch. Bridge sensivities from 2mV/V to 40mV/V are possible. The very coarse adjustment is done via DIP-switch. The finely adjustment coarse / fine is done via a 20-turn spindle operated potentiometer. The bridge supply is controlled by the 6-wire connection and switchable between 10V and 5V. An auxiliary power of 24Vdc is required. The units are in a 22,5mm housing and mountable on cap rail TS35.Datasheet

Measuring Amplifier for Effective Values TRUE RMS with Treshold Switch to 5A. Measuring Amplifier for Effective Values with Treshold Switch   Input frequency 6Hzto 1kHzTrue effective value measurement, TRMSHigh base accuracy, < 0,4%Diverse in- and output signals possibleSwitching treshold from 0 to 100% adjustableBuilt-in switching treshold adjustmant aid 0 - 10VStatus display when reaching the treshold valueMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 17,5mmPB - Power-Bus - compatibleHigh reliability, 5 years warrantyThe devices of the Measuring Amplifier for effective values of the series EM1 have been developed for the converting of true effective values from currents up to  5Aac or voltages up to 40Vac into an analog norm signal.Datasheet

Measuring Amplifier for effective values TRUE RMS with 3-way potentional isolation. Shape 22,5mm. Measuring Amplifier for effective valuesTRUE RMS  Input frequency6Hz to 1kHz True effective value measurement, TRMSHigh base accuracy, < 0,4%Measuring currents up to 10AMeasuring voltages up to 400V3-way galvanic isolationMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 22,5mmHigh reliability, 5 years warrantyThe devices of the Measuring Amplifier for effective values of the seriesEM2 have been developed for the converting of the true effective value of sinusoidal or non-sinusoidal currents up to 10Aac or voltages up to 400Vac into an analog norm signal.  Datasheet

Measuring rectifier / magnitude generator for analog standard signals ±10V. Power supply 24V DC. Width 17.5mm. Short descriptionAnalog measuring rectifier / magnitude generator● Voltage output● Linearity error < 0.25%● Gain can be finely adjusted● For TS35 mounting rail installation● Clear terminal labeling● Small dimensions● 17.5 mm design● PB - power bus - capable● High reliability, 5-year warranty The analog measuring rectifiers are used for rectifying or forming the magnitude of standard signals 0...±10V. And convert an input signal from 0...±10 V to 0...+10V. An auxiliary power supply of 24Vdc is required. Datasheet

Ramp Function Generator. Input/ output 0...10V. Auxiliary power24V. Shape 17,5mm. Steepness Limiter - Ramp Function GeneratorFast stop-function, < 1msIN/OUT 0V to +/-10VTwo ramp functionRamps separately adjustableRamp times 0,2s to 120s possibleMountable on 35mm cap rail TS35Clear terminal labelingNarrow designShape 17,5mm, superlowPB - Power-Bus - compatibleHigh reliability, 5 years warranty The devices of the Ramp Function Generator series SB1 have been developed for limiting surge changing analog signals of  0...10V to a linear rising signal. Both, the rising as well as the falling ramp of the Ramp Function Generator can be, separately from each other, adjusted in the range of 0,2s to 120s. The adjustment is done via a 20-turn spindle-operated potentiometer. For the case of need there is a fast-stop function which will set the output signal to 0 in a time of < 1ms. The Ramp Function Generator needs an auxiliary power supply of 24V DC.Datasheet
